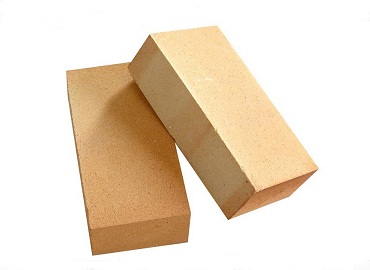

Insulating Fire Brick
Insulating fire brick，also known as light weight fire brick,or IFB.Insulating fire brick is white color,light weight,widely used in kilns,forges and high temperature applications ranging from 1050C to 1760C.
Color: White
Package:Carton,Pallet
Usage:Insulation or fire lining in kiln,furnace
Overview of Insulating Fire Brick
Insulating firebricks are light weight and have good insulation properties.Insulating fire bricks are made from refractory clay and alumina.Light weight fire bricks are porous,their weight is equal to 20-25% of dense hard brick.The porous nature is the key to good insulation,and prevent heat loss,and improve the efficient in high temperature furnace.
Available Grade
Item | Density(kg/m3) | Temperature Ratings |
JM23 | 0.6 | 1300℃/2370℉ |
JM26 | 0.8 | 1400℃/2550℉ |
JM28 | 0.9 | 1500℃/2730℉ |
JM30 | 1.0 | 1550℃/2820℉ |

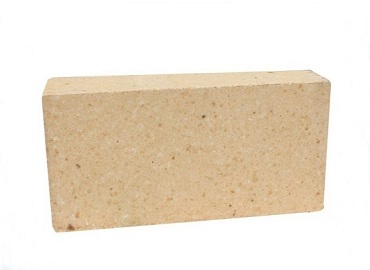

Product Shape
Insulating fire brick(IFB) standard size is straight 230x114x65,230x114x75mm.Other shapes such as end arch,side arch or specific shape,pleas contact us for quote.
Features
Light weight and good insulating values
Low thermal conductivity and energy efficient
Accurate size and machining
Different density to meet various insulation application
Easy of handing because of light weight
High Mullite content,stable against chemical attach and good resistance in reducing atmospheres
Application
Usually the furnace lining use different grade fire brick and refractories to as a combination. Insulating fire brick normally used as back up lining brick behind dense hard brick or castable,also could be used as fire face brick for example kilns.
Fire box in gas and electric powered kilns
Wood and oil burning kilns
Safety lining in salt kilns and other applications
Waste recovery
Incinerators
Combustion chambers
Crucible furnace
Glass and ceramic industries
How to Order Insulating Fire Bricks?
Shandong Fengyuan Refractory Company is a professional supplier mainly engaged in the research, development and production of refractory materials.The factory mainly produce refractory products such as fireclay brick,high alumina brick,insulation brick and light weight insulation materials. The performance of our products is stable and reliable,widely used in metallurgy, foundry, power generation,smelting,ceramics,glass and other industries.
If you need insulating fire brick or need specific dimensions & shapes,please contact us to Take A Quote,we will offer more details to help.
Cargo will be delivered by sea transportation.
Payment Terms: TT
Production Capacity: 60 Tons/Day
Delivery Time: Please contact us to confirm directly.
Data Sheet
Item | JM23 | JM26 | JM28 | JM30 | JM32 |
Classification temp (C) | 1300 | 1400 | 1500 | 1550 | 1600 |
Bulk Density(g/cm3) | 0.6 | 0.8 | 0.9 | 1 | 1.1 |
Crushing Strength(Mpa) | 1.2 | 1.8 | 2.5 | 3.3 | 3.5 |
Modulus of rupture(MPa) | 1 | 1.7 | 2.3 | 3.1 | 3.2 |
Permanent Linear Change(%) CT Cx24hrs | 0.6 | 0.6 | 0.8 | 0.9 | 1.01 |
Thermal Expansion at 1000C | 0.5 | 0.52 | 0.52 | 0.53 | 0.7 |
Thermal Conductivity(w/m.k) | |||||
350C | 0.18 | 0.27 | 0.32 | 0.38 | 0.49 |
400C | 0.2 | 0.29 | 0.34 | 0.4 | 0.5 |
600C | 0.24 | 0.32 | 0.36 | 0.42 | 0.51 |
Al2O3(%) | 40 | 56 | 67 | 73 | 77 |
Fe2O3(%) | 1 | 0.8 | 0.7 | 0.7 | 0.5 |
